Installation Structure

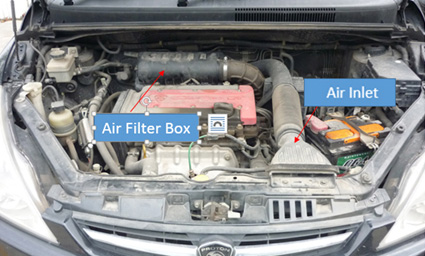

Locate Air Filter Compartment and Air Inlet hose position.

• Open air filter compartment.

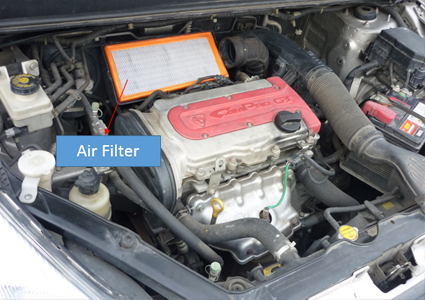

• Clean up air filter element and compartment.

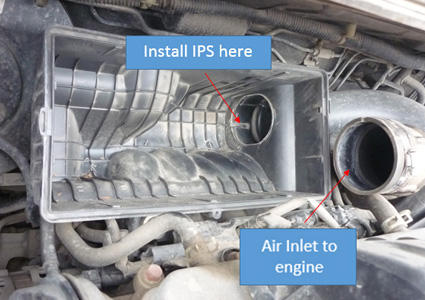

• Remove air filter and locate the air inlet hole.
• Make sure the length of the IPS is enough to cover up the air inlet hole, cut off excess length.

• Use a clean dry rag to clean up the dust in the air inlet hole.

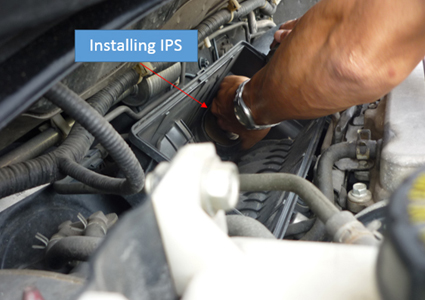

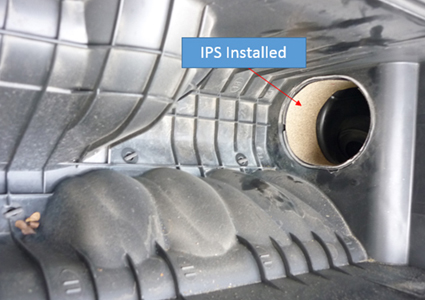

• Remove double sided tape behind the IPS and stick it accurately surround the inlet hole.

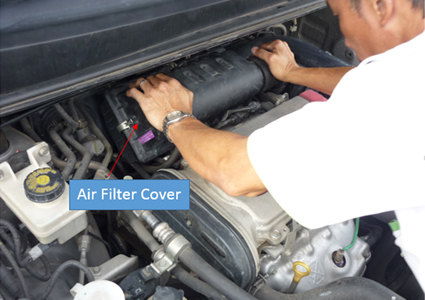

• Install air filter to its original position and ensure the air filter compartment is tightly closed.

• Start the engine, let the car idle for 5 -10 minutes.
• test drive the car and feel the differences.
